VDLS850 Vertical Machining Center

A vertical machining center for milling, drilling, reaming and tapping of plates, housings and other medium-size components.

Worktable size (L × W)
1,000 × 500 mm
X/Y/Z axis travel
860 / 510 / 560 mm
Maximum spindle speed
12,000 r/min (direct drive)
Maximum table load
600 kg

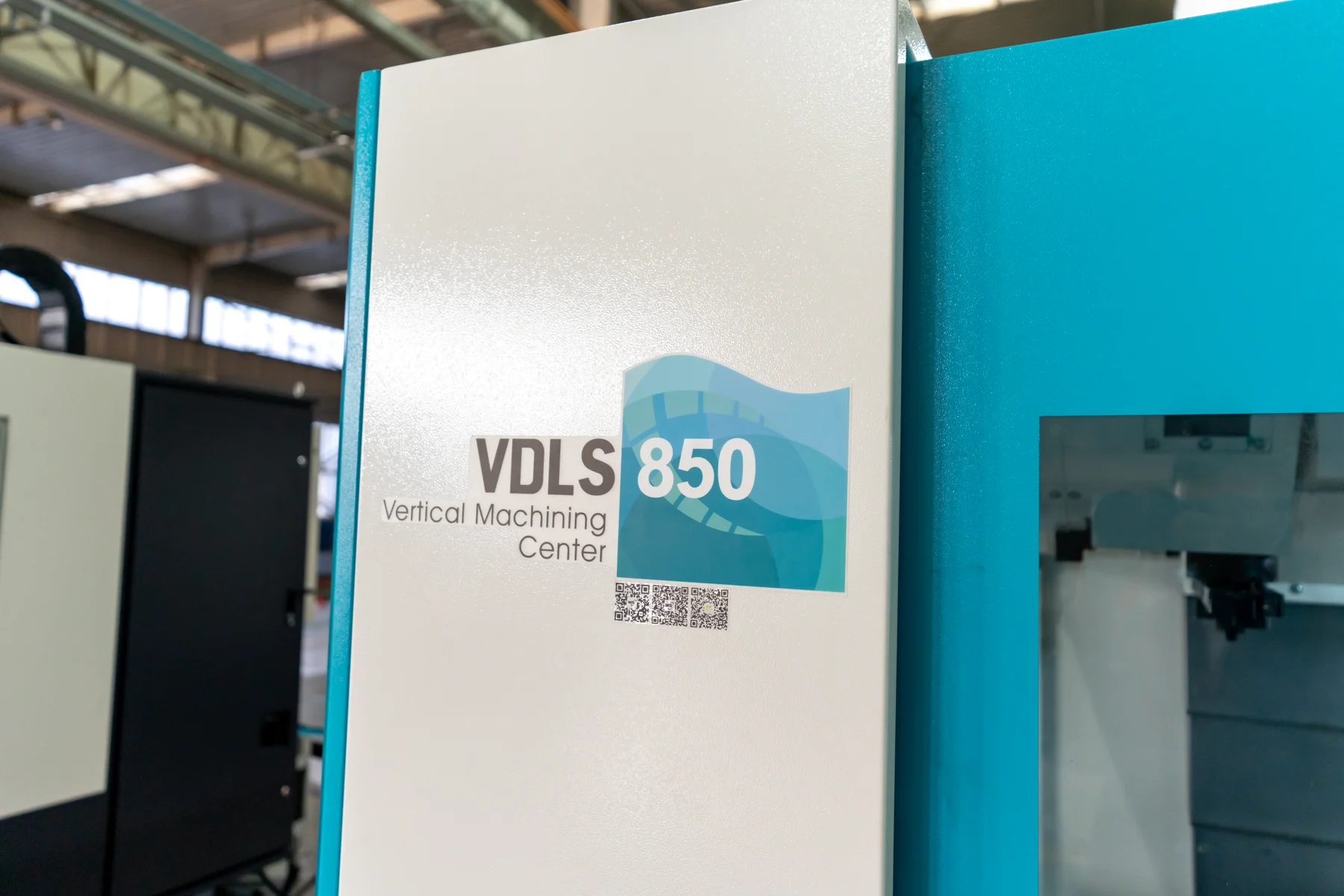

VDLS850 machine view

Product Overview

VDLS850 has a 1,000 × 500 mm table, 860 / 510 / 560 mm X/Y/Z travel, a 12,000 r/min direct-drive spindle and a 24-tool arm-type magazine. Share the workpiece, material, drawing and required process so the configuration can be confirmed before quotation.

Key Features

  • Linear guideways on X/Y/Z axes
  • FANUC 0i-MF PLUS (5) CNC system

Technical Specifications

SpecificationValue
Capacity & workpiece
Worktable size (L × W)1,000 × 500 mm
Maximum table load600 kg
Spindle nose to table145–705 mm
Travel & guideways
X/Y/Z axis travel860 / 510 / 560 mm
Spindle
Maximum spindle speed12,000 r/min (direct drive)
Spindle taperNo. 40 (7:24)
Spindle motor power7.5 / 11 kW
Tooling
Tool magazineArm type, 24 tools
Feed
Maximum cutting feed10 m/min
Rapid traverse (X/Y/Z)36 / 36 / 30 m/min
Accuracy
Positioning accuracy0.008 / 0.008 / 0.008 mm (X / Y / Z)
Repeat positioning accuracy0.005 / 0.005 / 0.005 mm (X / Y / Z)
Dimensions & utilities
Overall dimensions (with chip conveyor)2,496 × 2,530 × 2,679 mm (standard spiral conveyor)
Machine weight5,600 kg

Equipment configuration

Standard Configuration

  • FANUC CNC control
  • 12,000 r/min direct-drive spindle
  • 24-tool arm-type magazine
  • CE electrical components
  • Lubrication system
  • Oil cooler
  • Heat exchanger
  • Air gun and handwheel
  • Screw-type chip conveyor and chip cart
  • Alarm light
  • Work light
  • Safety interlocks
  • Oil-water separator
  • Toolbox
  • Fully enclosed guarding
  • Steel pallet packaging
  • Quality certificate and packing list
  • FANUC manual and PLC USB drive
  • Electrical and mechanical operating manuals

Optional Configuration

  • Siemens SINUMERIK 828D CNC control
  • Mitsubishi M80B CNC control
  • GSK 25i CNC control
  • HNC 808Di CNC control
  • Through-spindle coolant
  • High-pressure coolant unit
  • Washdown gun
  • Air conditioner
  • Workpiece probe
  • Tool setter
  • Manual tailstock with center
  • High-volume washdown system
  • 4th-axis rotary table
  • 3+2-axis rotary table
  • Chain-type chip conveyor and chip cart
  • Hydraulically braked tailstock
  • 3-jaw chuck
  • Hydraulic power unit
  • Oil mist separator
  • Air-over-hydraulic booster cylinder

Application Industries

  • Plates, discs and housings
  • Molds and precision components
  • Milling, drilling, reaming and tapping in one setup
