DMTG · MACHINE CATEGORIES

Vertical Machining Center

Vertical machining centers for plates, discs, housings, molds and precision components.

77 models

DMTG PRODUCT PROGRAM

Vertical Machining Center

CNC Machine Catalog →

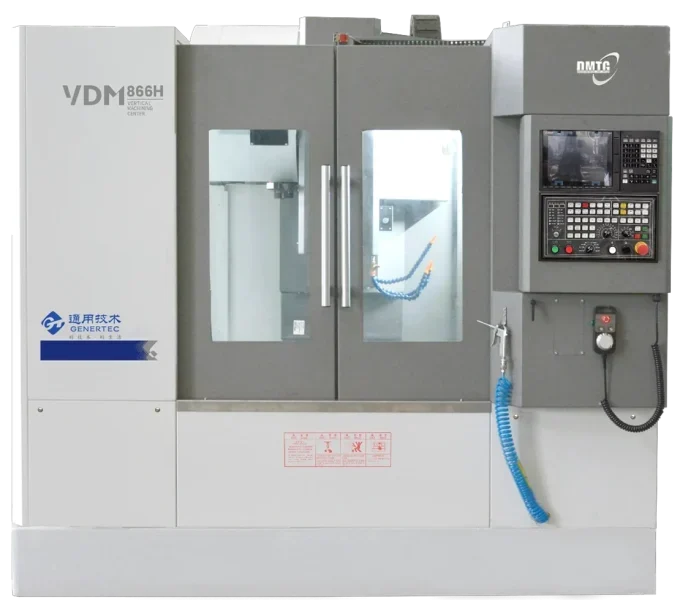

VDM866H Vertical Machining Center — official exact-model source image

Vertical Machining Center

VDM866H Vertical Machining Center

VDM866H is a vertical machining center for machining plates, discs, housings, molds and precision components.

Worktable size (L × W)
1000 × 500 mm
Maximum load
600 kg
X/Y/Z axis travel
820 / 600 / 600 mm

Typical application: Machining plates, discs, housings, molds and precision components.

View Details
VDLS850 vertical machining center — front view in the Dalian Machine Tool workshop

Vertical Machining Center

VDLS850 Vertical Machining Center

A vertical machining center for milling, drilling, reaming and tapping of plates, housings and other medium-size components.

Worktable size (L × W)
1,000 × 500 mm
Maximum table load
600 kg
X/Y/Z axis travel
860 / 510 / 560 mm

Typical application: Plates, discs and housings

View Details
VDLS1000 Vertical Machining Center — official exact-model source image

Vertical Machining Center

VDLS1000 Vertical Machining Center

VDLS1000 is a vertical machining center for machining plates, discs, housings, molds and precision components.

Worktable size (L × W)
1120 × 560 mm
Maximum load
750 kg
X/Y/Z axis travel
1040 / 580 / 620 mm

Typical application: Machining plates, discs, housings, molds and precision components.

View Details

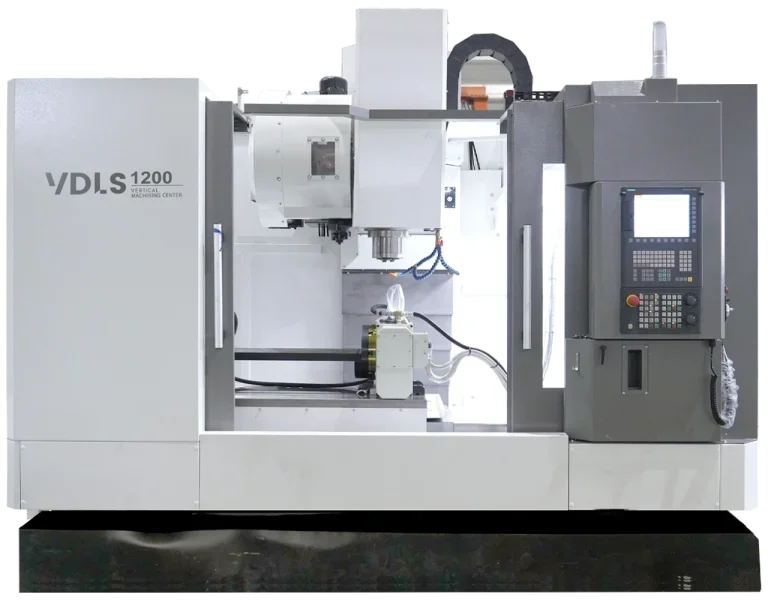

VDLS1200 Vertical Machining Center — official exact-model source image

Vertical Machining Center

VDLS1200 Vertical Machining Center

VDLS1200 is a vertical machining center for machining plates, discs, housings, molds and precision components.

Worktable size (L × W)
1220 × 620 mm
Maximum load
1,200 kg
X/Y/Z axis travel
1220 / 620 / 685 mm

Typical application: Machining plates, discs, housings, molds and precision components.

View Details
VDLS1300 Vertical Machining Center — official exact-model source image

Vertical Machining Center

VDLS1300 Vertical Machining Center

VDLS1300 is a vertical machining center for machining plates, discs, housings, molds and precision components.

Worktable size (L × W)
1300 × 560 mm
Maximum load
600 kg
X/Y/Z axis travel
1290 / 580 / 620 mm

Typical application: Machining plates, discs, housings, molds and precision components.

View Details

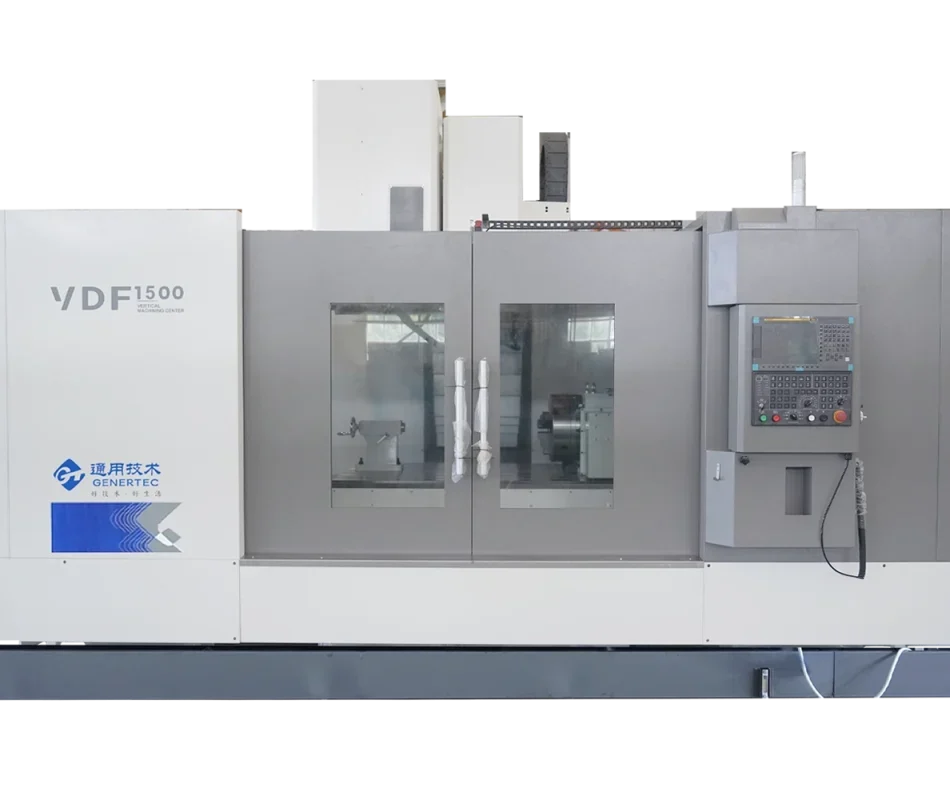

VDF1500 Vertical Machining Center — official exact-model source image

Vertical Machining Center

VDF1500 Vertical Machining Center

VDF1500 is a vertical machining center for machining plates, discs, housings, molds and precision components.

Worktable size (L × W)
1700 × 800 mm
Maximum load
2,500 kg
X/Y/Z axis travel
1560 / 830 / 790 mm

Typical application: Machining plates, discs, housings, molds and precision components.

View Details

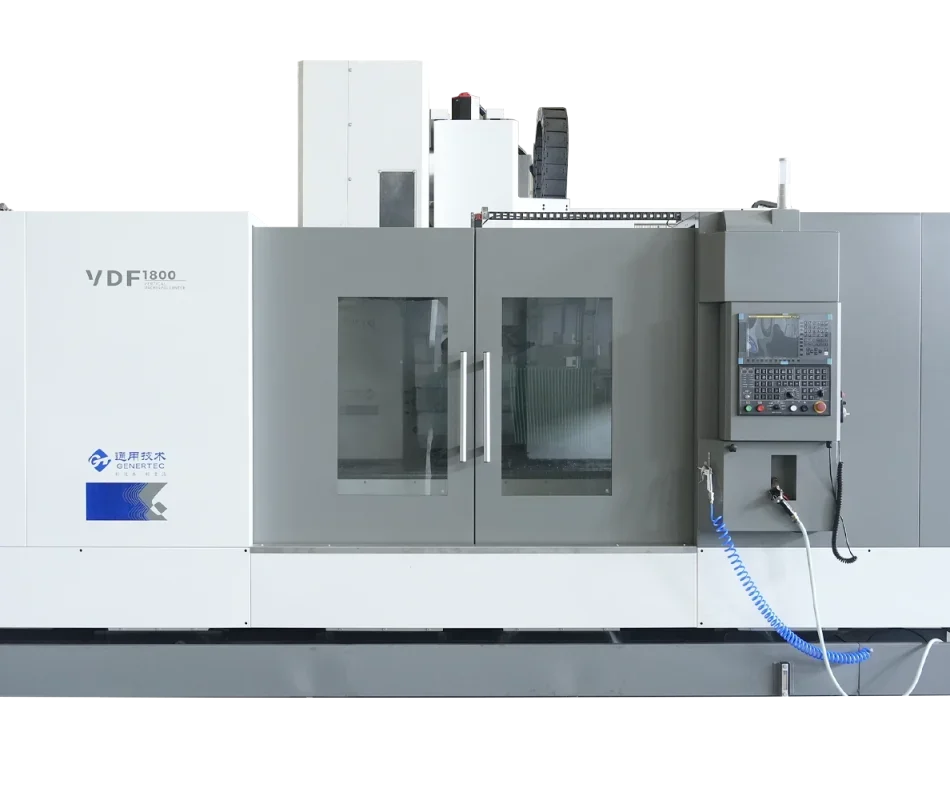

VDF1800 Vertical Machining Center — official exact-model source image

Vertical Machining Center

VDF1800 Vertical Machining Center

VDF1800 is a vertical machining center for machining plates, discs, housings, molds and precision components.

Worktable size (L × W)
2000 × 800 mm
Maximum load
2,500 kg
X/Y/Z axis travel
1880 / 830 / 790 mm

Typical application: Machining plates, discs, housings, molds and precision components.

View Details
