Horizontal Machining Center

Explore horizontal machining centers: MDH50, MDH65, and MDH80. Compare table sizes, axis travel and equipment options. Request a quotation from DMTG.

6models

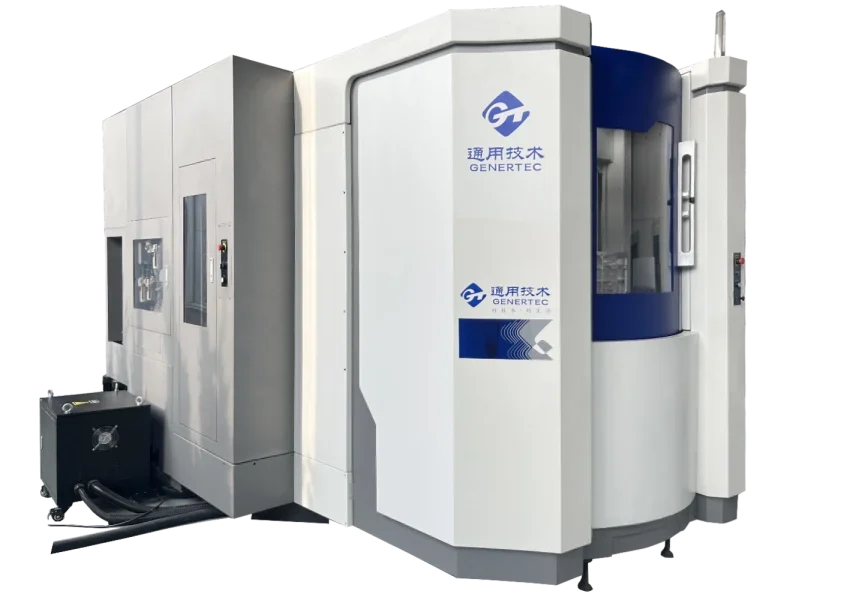

MDH40P Horizontal Machining Center — official exact-model source image

MDH40P Horizontal Machining Center

Worktable size (L × W)
400 × 400 mm
X/Y/Z axis travel
630 / 620 / 710 mm
Maximum spindle speed
10,000 r/min direct drive, optional 12,000 r/min direct drive

Typical application: Multi-face milling, boring, drilling, reaming and tapping in one setup.

View Details

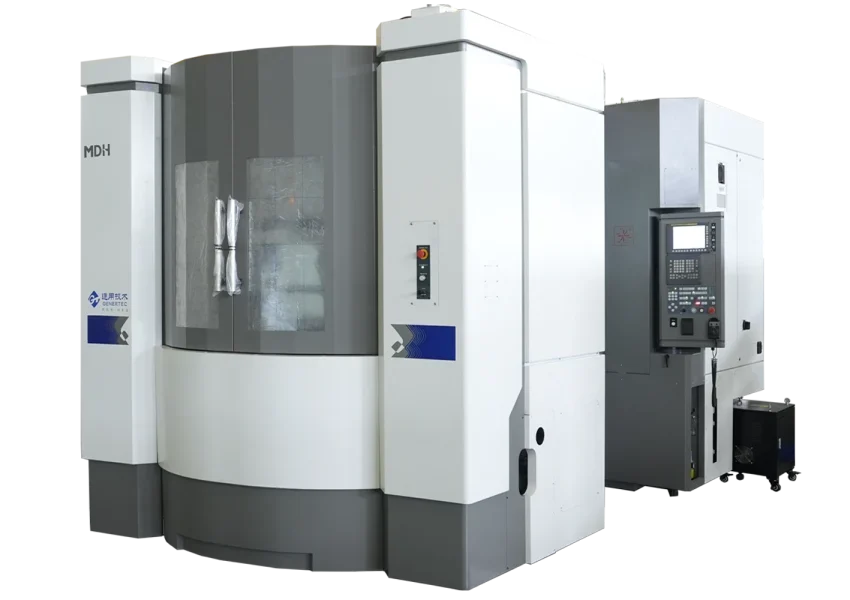

MDH50 machine view

MDH50 Horizontal Machining Center

Worktable size (L × W)
500 × 500 mm
X/Y/Z axis travel
780 / 750 / 800 mm
Maximum spindle speed
8,000 r/min motorized, optional 12,000 r/min motorized or 6,000 r/min gear drive

Typical application: Multi-face milling, boring, drilling, reaming and tapping in one setup.

View Details

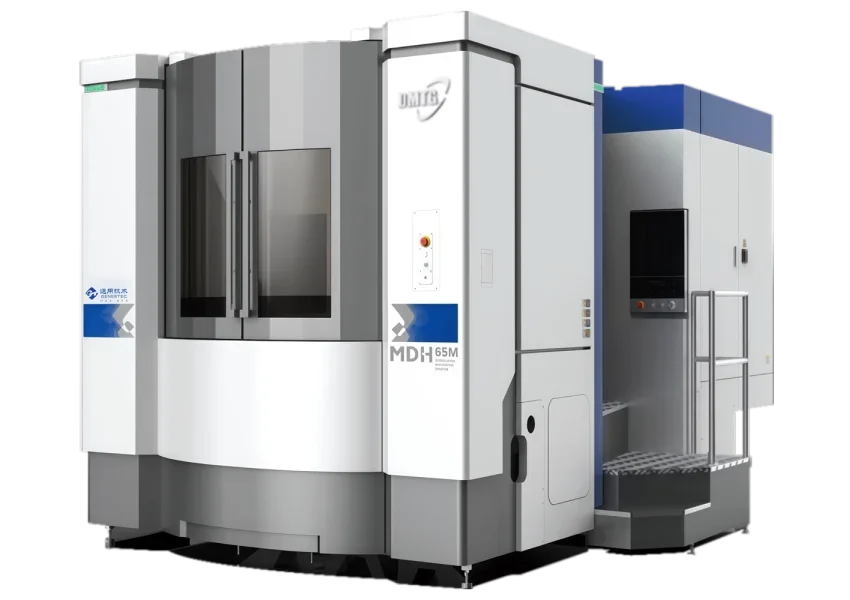

MDH65 machine view

MDH65 Horizontal Machining Center

Worktable size (L × W)
630 × 630 mm
X/Y/Z axis travel
1,050 / 900 / 900 mm
Maximum spindle speed
8,000 r/min motorized, optional 12,000 r/min motorized or 6,000 r/min gear drive

Typical application: Multi-face milling, boring, drilling, reaming and tapping in one setup.

View Details

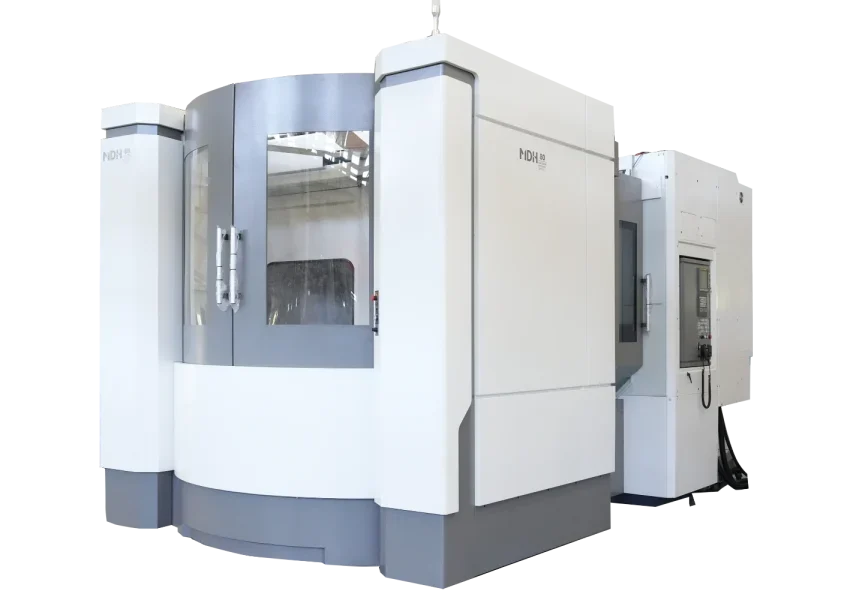

MDH80 machine view

MDH80 Horizontal Machining Center

Worktable size (L × W)
800 × 800 mm
X/Y/Z axis travel
1,400 / 1,100 / 1,050 mm
Maximum spindle speed
8,000 r/min motorized, optional 12,000 r/min motorized or 6,000 r/min gear drive

Typical application: Multi-face milling, boring, drilling, reaming and tapping in one setup.

View Details

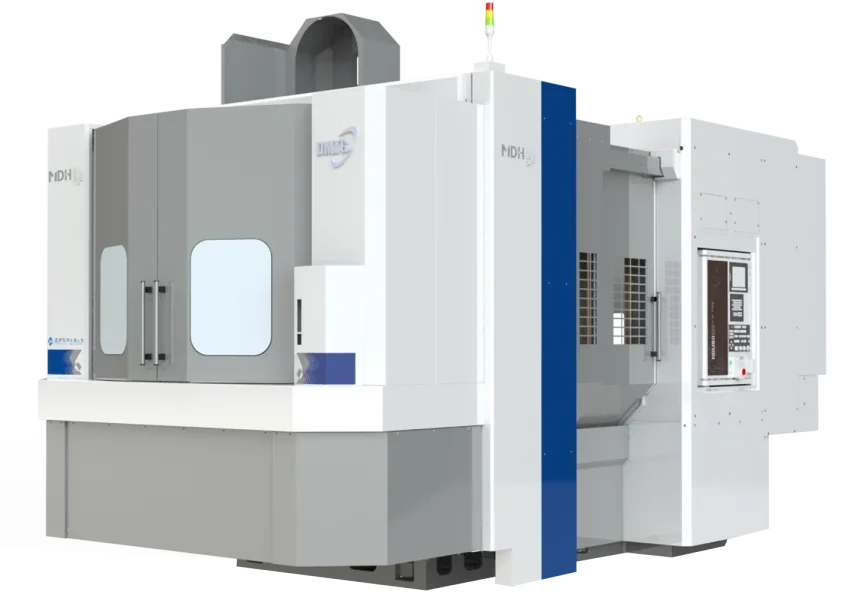

MDH100S Horizontal Machining Center — official exact-model source image

MDH100S Horizontal Machining Center

Worktable size (L × W)
1,000 × 1,000 mm
X/Y/Z axis travel
1,400 / 1,100 / 1,000 mm
Maximum spindle speed
8,000 r/min standard / 12,000 r/min motor spindle or 4,000 r/min gear-driven spindle optional

Typical application: Multi-face milling, boring, drilling, reaming and tapping in one setup.

View Details

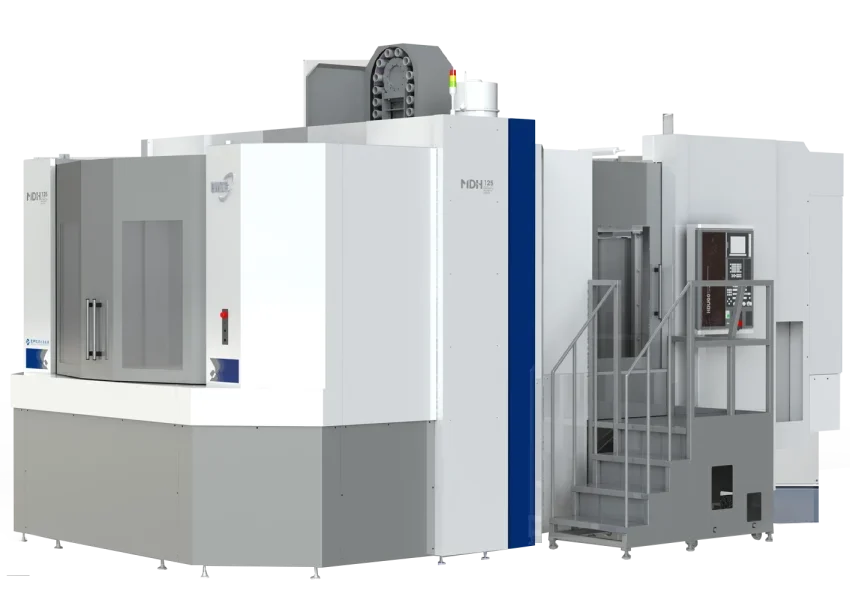

MDH125 machine view

MDH125 Horizontal Machining Center

Worktable size (L × W)
1,250 × 1,250 mm
X/Y/Z axis travel
1,700 / 1,400 / 1,240 mm
Maximum spindle speed
6,000 r/min motorized, optional 12,000 r/min motorized or 6,000 r/min gear drive

Typical application: Multi-face milling, boring, drilling, reaming and tapping in one setup.

View Details
